Stone Tools Introduction
Edge Processing Solutions
2021/02/05

The introduction of JINSHAN edge polishing wheels

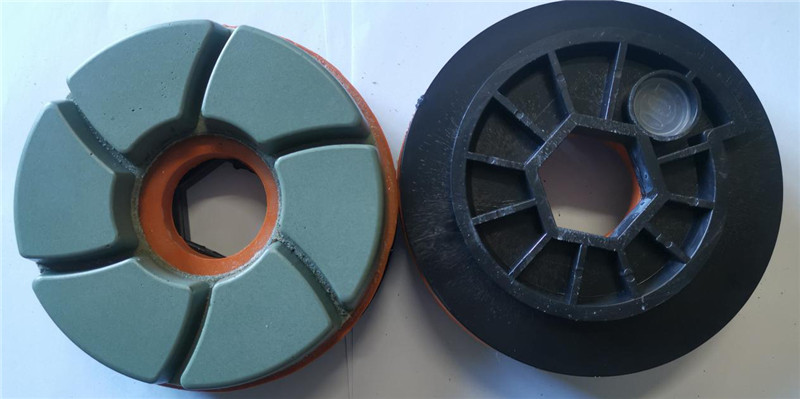

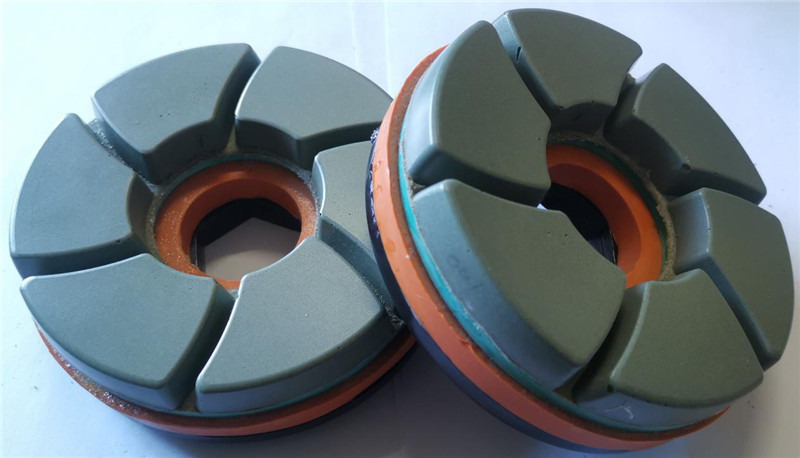

1. Edge polishing wheel LUX with slots

Grits: 100# 200# 400# 800# 1500# 3000#

It is mainly used for edge polishing quartz, sometimes it can also be used for soft granite.

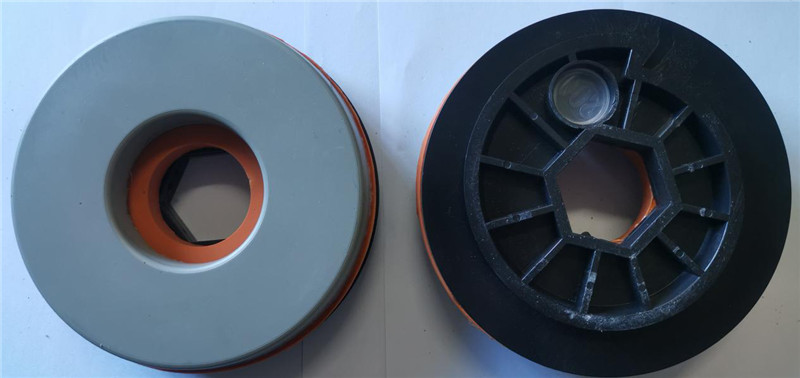

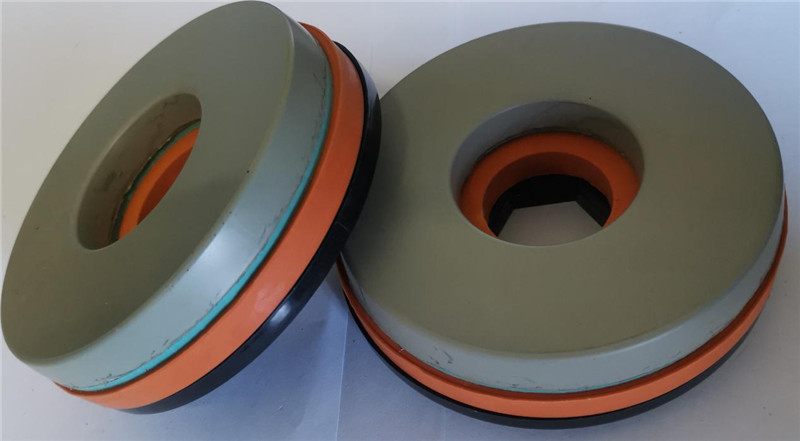

2. Edge polishing LUX without slots

Grits:400# 800# 1500# 3000#

It is used for edge chamfering quartz and granite.

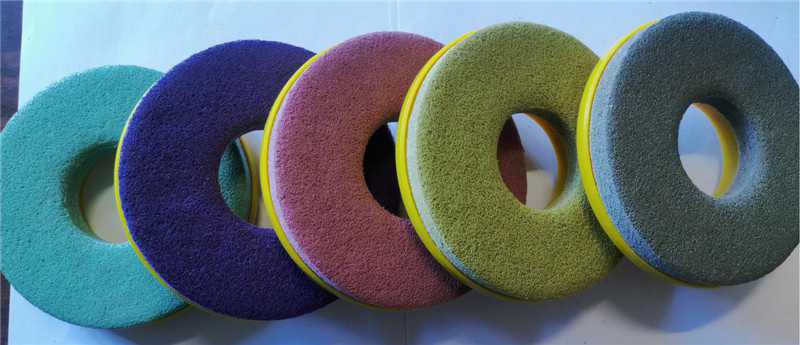

3. Sponge edge polishing wheel

Grits: 400# 800#1500# 3000# 6000#

It is mainly used for edge polishing quartz.

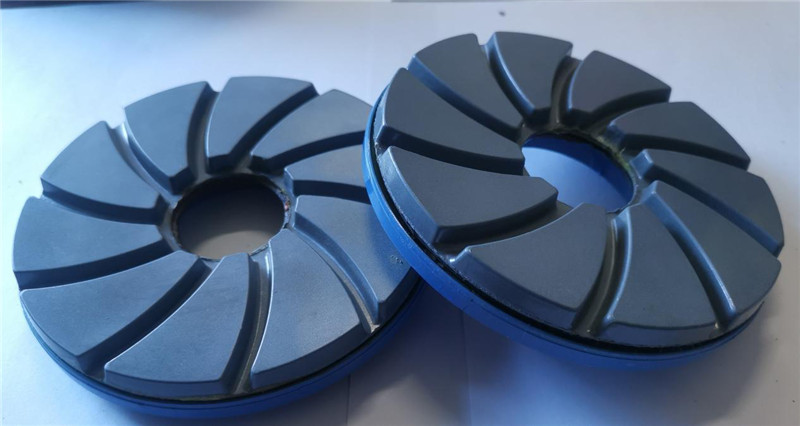

4. Granite edge polishing wheel with slots

Grits: 100# 200# 400# 800# 1500# 3000#

It is used for edge polishing granite.

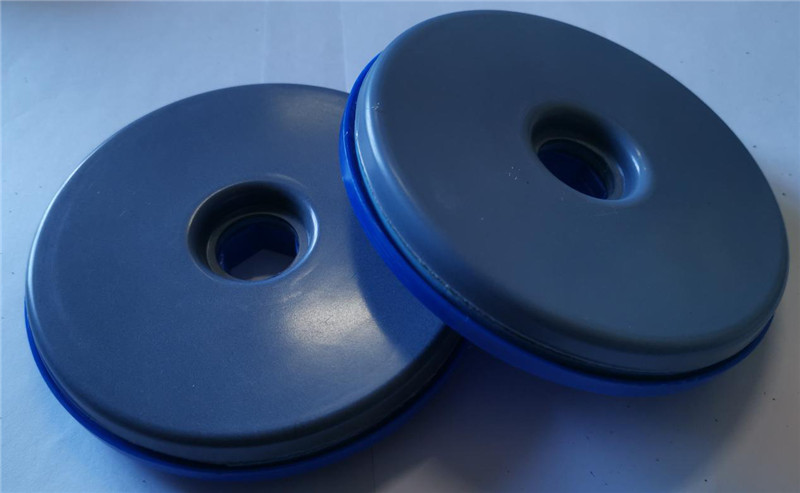

5. Granite edge chamfering wheel without slots

Grits: 400# 800# 1500# 3000#

It is used for edge chamfering granite.


The polishing solutions of JINSHAN edge processing wheel


1. For edge polishing quartz

Product
Edge polishing wheel LUX with slots
Sponge edge polishing wheel
Step 1 2 3 4 5 6
Grit 100# 200# 400# 800# 1500# 3000#

2. For edge chamfering quartz

Product

Edge polishing wheel LUX without slots

Step 1 2 3 4 5 6
Grit 800# 800# 1500# 1500# 3000# 3000#


3. For edge polishing granite

Product

Granite edge polishing wheel with slots

Edge polishing wheel LUX with slots
Step 1 2 3 4 5 6
Grit 100# 200# 400# 800# 1500# 3000#


4. For edge chamfering granite

Product

Edge polishing wheel LUX without slots

Step 1 2 3 4 5 6
Grit 800# 800# 1500# 1500# 3000# 3000#


The above solutions were tested for many times by JINSHAN engineer, and they were verified as the best solutions for 6 steps edge polishing and chamfering quartz and granite. According to different situations, there are backup solutions can be provided. Please let us know if you need.
