SEGMENTS

JINSHAN segments are used for grinding, cutting, and drilling both natural and artificial stone

Product Detail

SEGMENTS

DESCRPITION:

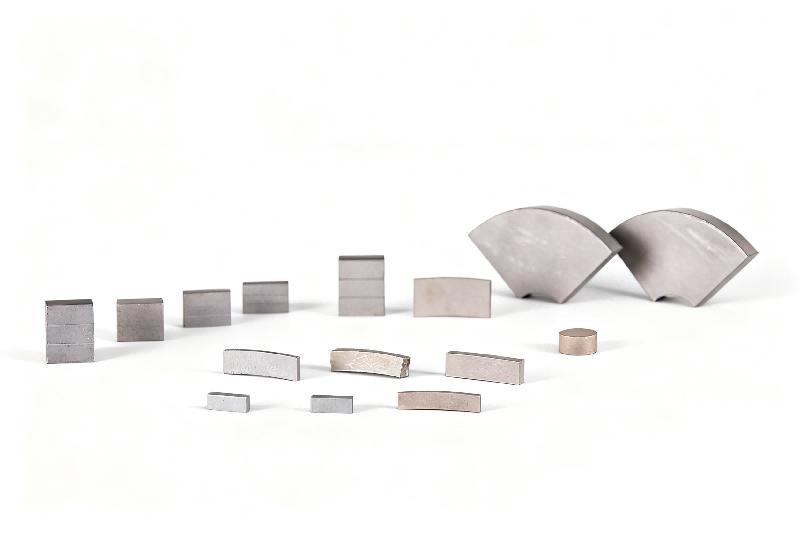

JINSHAN segments are used for grinding, cutting, and drilling both natural and artificial stone. In addition to our regular sizes, we also manufacture customized sizes to meet specific requirements.

SPECIFICATIONS:

FOR GRANITE

DIAMETER	SIZE OF SEGMENT
250mm	35x3.0x10mm
300mm	40x3.0x10mm
350mm	40x3.0x10mm
400mm	40x3.4x10mm
450mm	40x3.6x10mm
500mm	40x3.8x10mm
550mm	40x4.2x10mm
600mm	40x4.5x10mm
650mm	40x4.6x10mm
700mm	40x5.0x10mm
750mm	40x5.0x10mm
800mm	40x5.5x10mm
850mm	40x5.5x10mm
900mm	40x5.5x10mm
1000mm	24x7/6x13mm
1200mm	24x7.6/7.0x13mm
1600mm	24x8.2/7.4x13mm
1600mm	24x9.2/8.6x13mm
1800mm	24x10.5/9.5x15mm
2000mm	24x10.5/9.5x15mm
2200mm	24x11.5/10.5x15mm
2500mm	24x11.5/10.5x15mm
3000mm	24x13.1/12.2/11.5x15mm
3500mm	24x13.8/13/12.2x20mm

FOR MARBLE

DIAMETER	SIZE OF SEGMENT
250mm	35x3.2x8mm
300mm	40x3.2x8mm
350mm	40x3.2x8mm
400mm	40x3.6x8mm
450mm	40x3.8x8mm
500mm	40x4.0x8mm
550mm	40x4.2x8mm
600mm	40x4.6x8mm
650mm	40x4.6x8mm
700mm	40x5.0x8mm
800mm	40x5.5x8mm
850mm	40x6.0x8mm
900mm	40x6.0x8mm
1000mm	24x7.5x10mm
1200mm	24x8.0x10mm
1600mm	24x10x10mm
1800mm	24x10.5x10mm
2000mm	24x12x10mm

PACKING DETAILS:

The segments are packed with small inner boxes, then according to order quantity in one carton to prevent overweight packing.

FEATURES:

1.Many size of segments can be offered.

2.Different formulas for different markets.

3.Different formulas for different hardness of stones.
